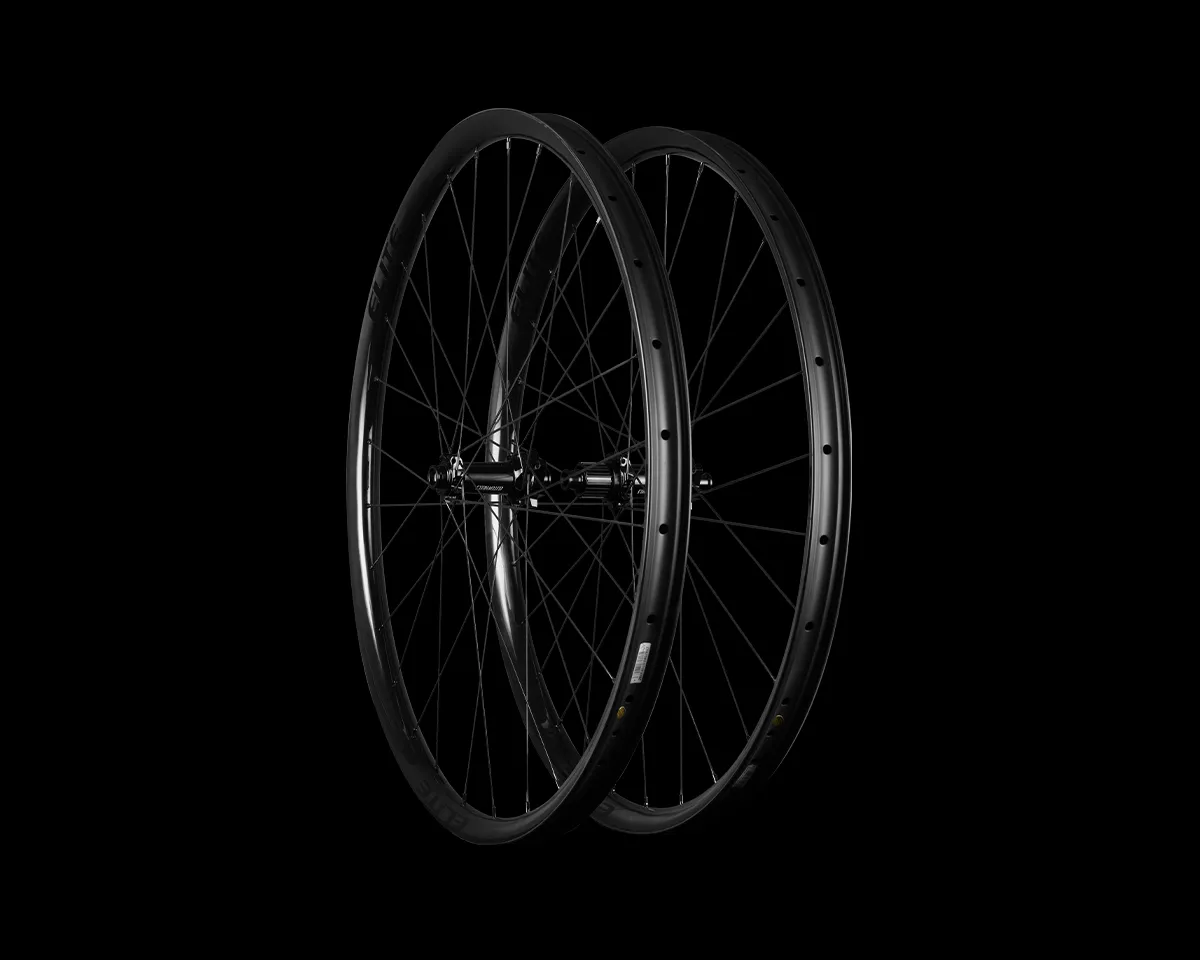

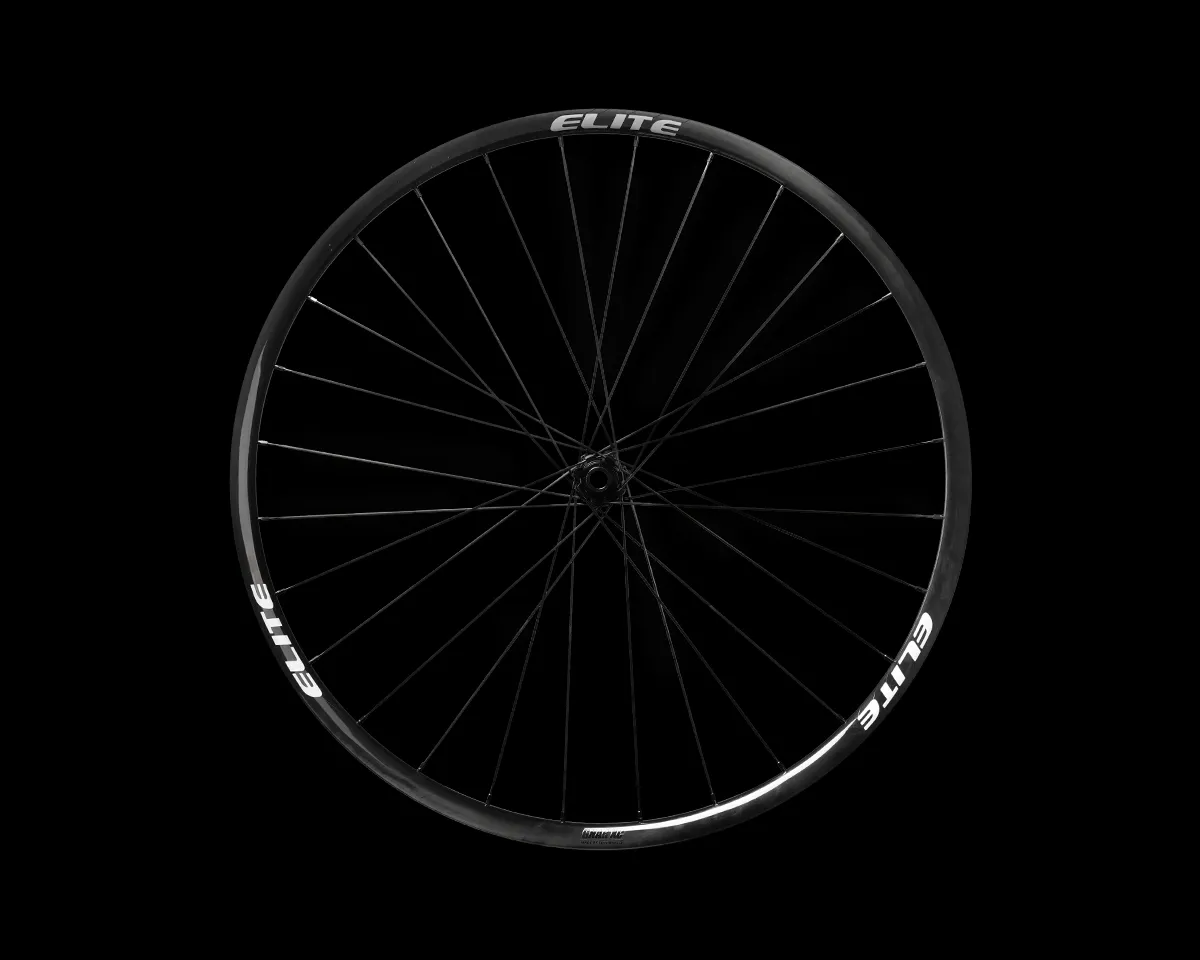

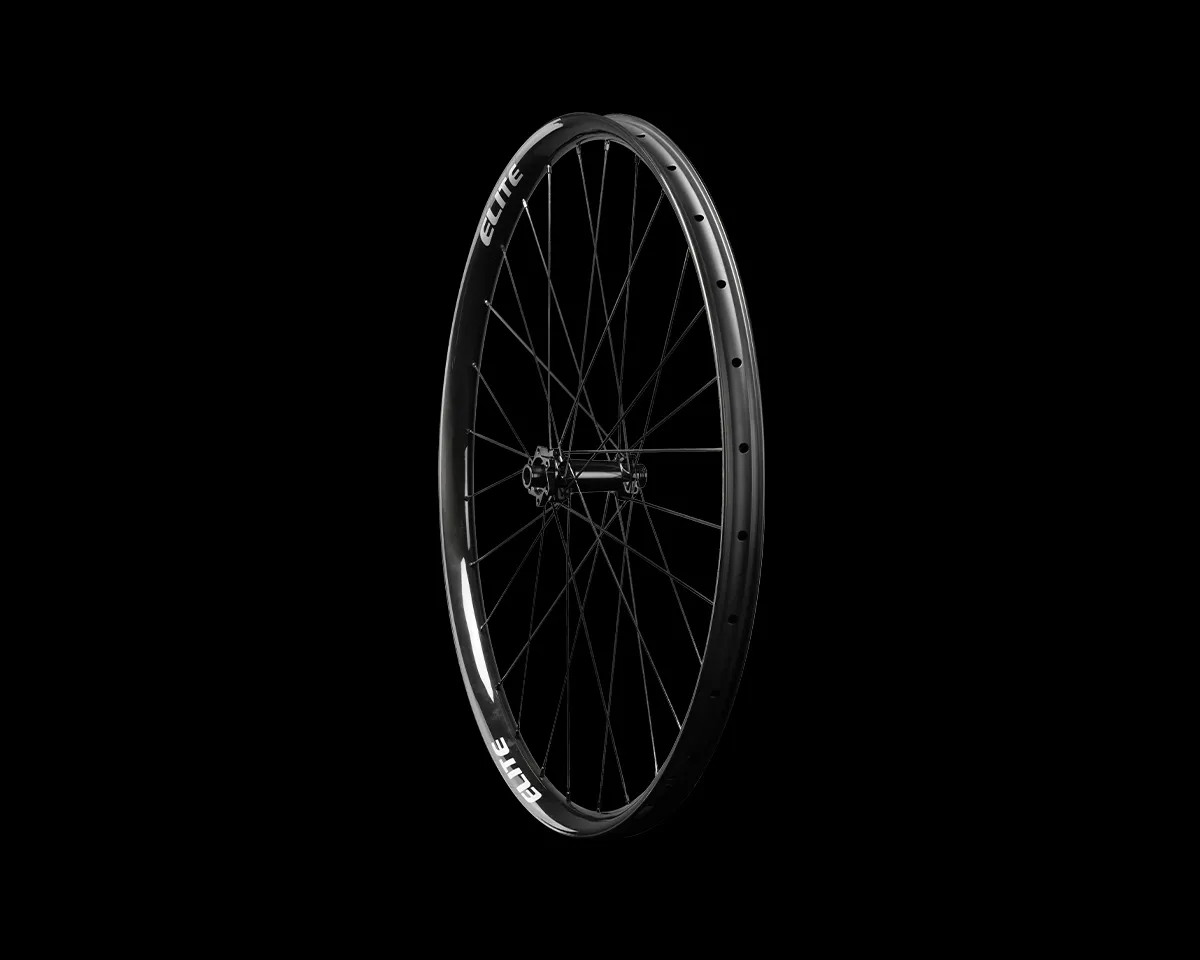

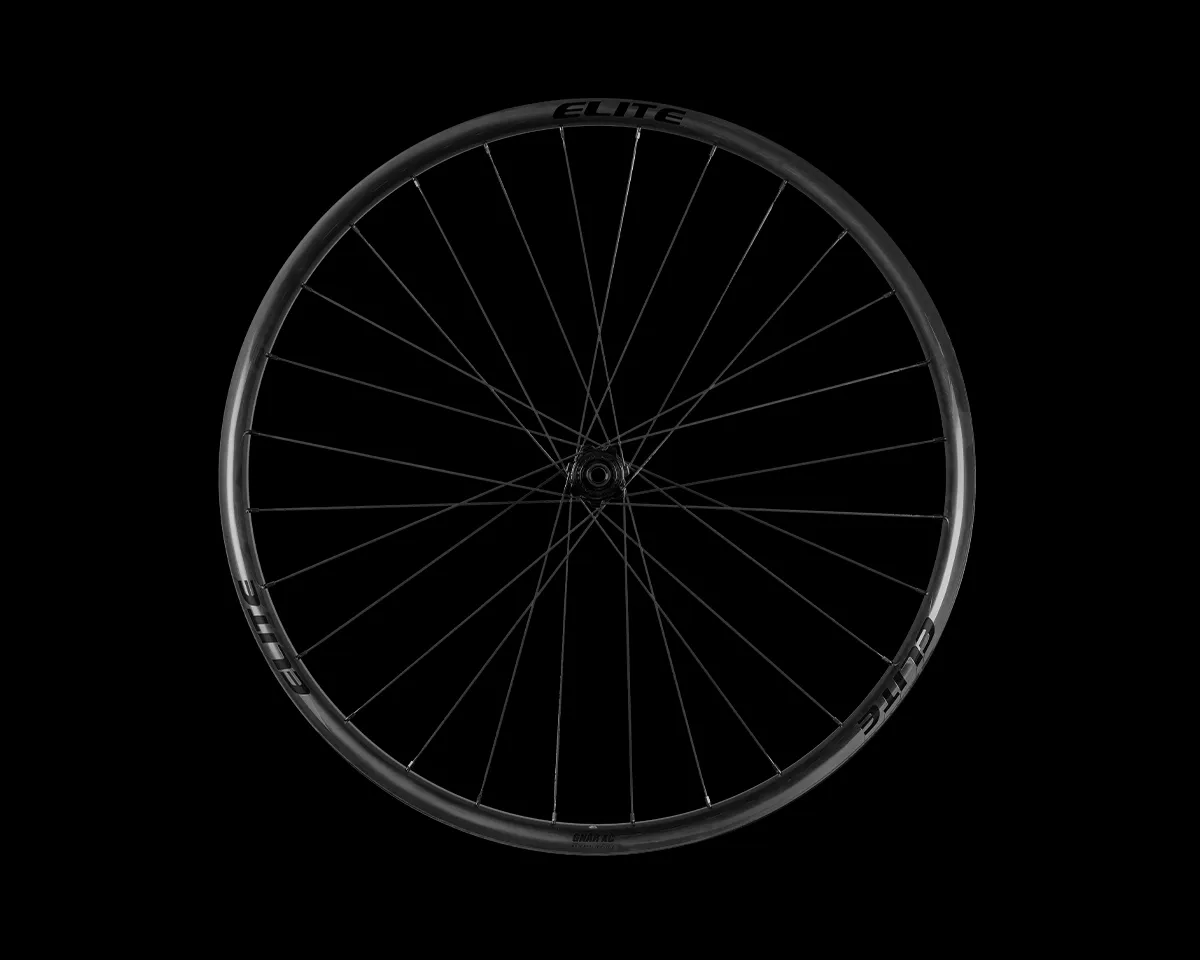

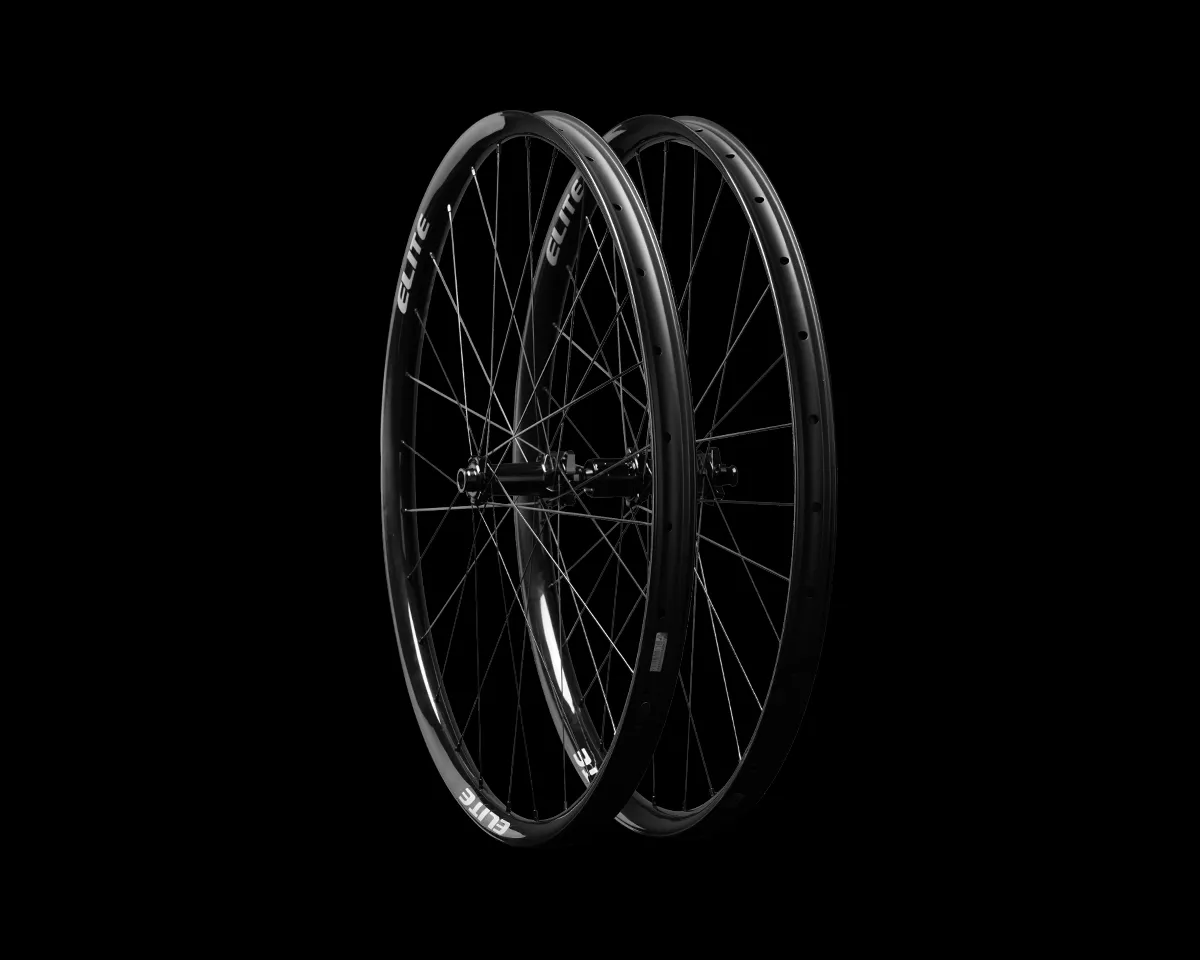

29er Gnar XC

[vc_row css=”.vc_custom_1636434630693{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_column_text css=”.vc_custom_1663139135673{margin-right: 5% !important;margin-left: 5% !important;padding-left: 1em !important;}”]

Specifications

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Wheel Size	29″
Tire Compatibility	Tubeless
Rim Depth	23mm
Inner Width	30mm
Outer Width	36mm
Rim Profile	Asymmetric
Offset	3mm
Bead Type	Hookless
Rim Finish	UD Glossy Black

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Max Tire Pressure	60psi/4.14bar
Extras	Rim Tape(Installed), Tubeless Valves(Installed)
Weight (Pair)	1320+/-30g(without tubeless valves and rim tape)
Rider Weight Limit	275lbs/125kg
Recommended Tire Sizes	2.2″-2.7″
Compatible Tire Sizes	700×35-50c
Intended Use	Cross Country
ERD	593mm

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Hub
Front Hub Spacing	15x110mm
Rear Hub Spacing	12x148mm
Bearing	TPI Steel
Brake Compatibility	Disc (6-bolt)
Freehub Type	50T Ratchet
Freehub Compatibility	Shimano HG / SRAM XD / Shimano MS

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Spoke
Front Spoke Pattern	3X/3X(1:1）
Rear Spoke Pattern	3X/3X(1:1）
Spoke Count	28F/28R
Spoke Type	Sapim CX-Ray
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”58136″ img_size=”full” onclick=”link_image” title=”29er Gnar XC Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1749621925685{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

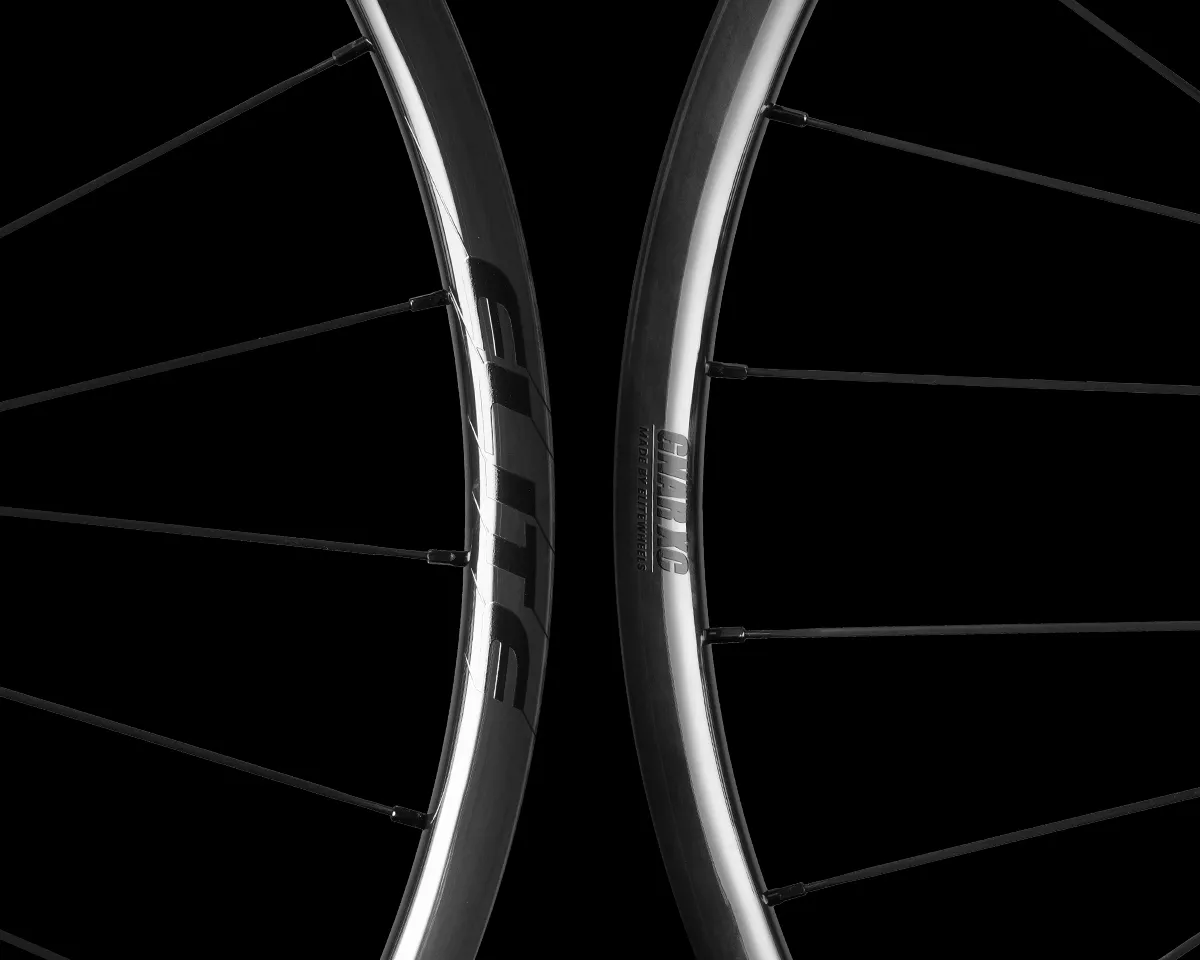

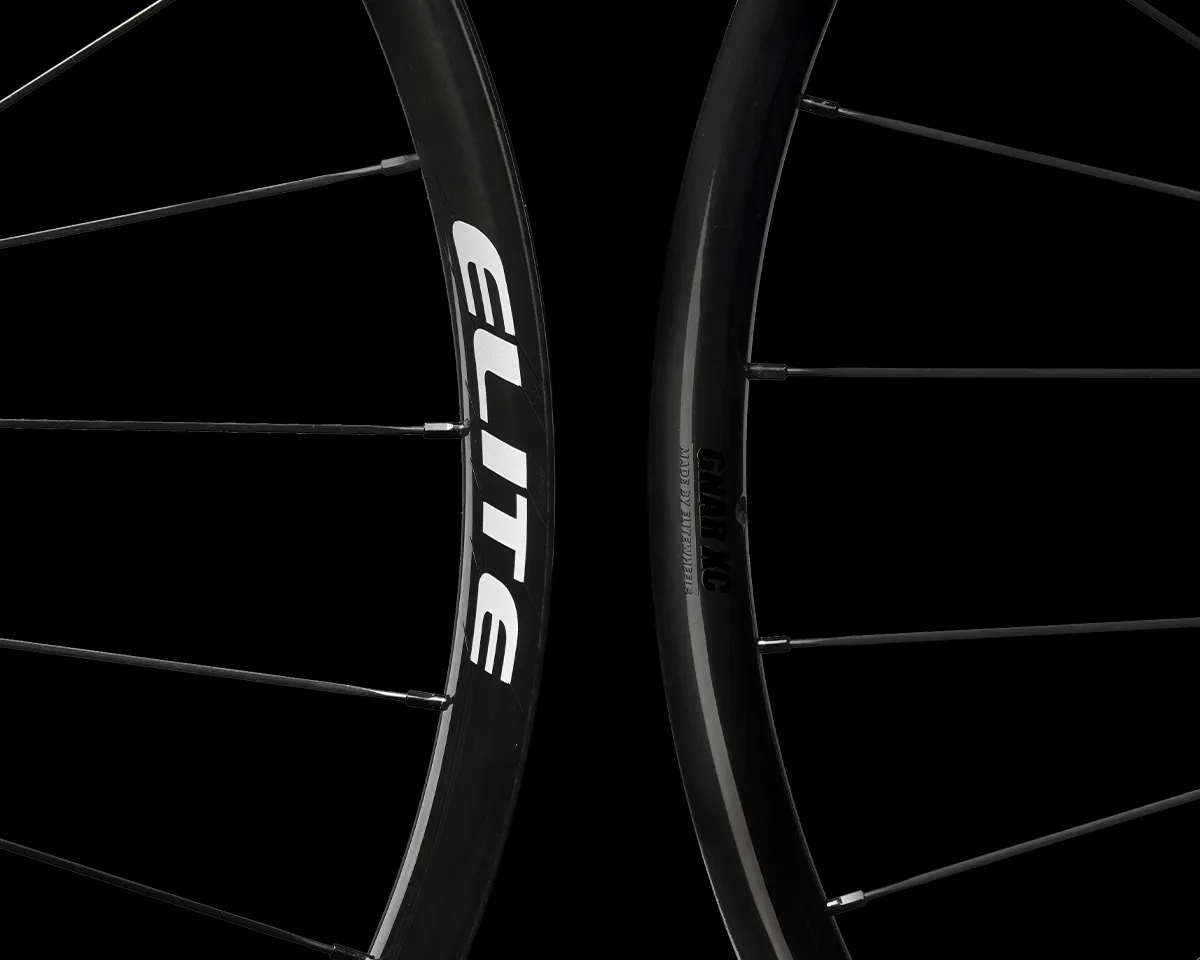

RIM

The Gnar XC rim features an asymmetric design that enhances stress balance and improves lateral stiffness. Designed for modern tubeless setups, the hookless rim allows for effortless installation—requiring only a standard floor pump. The carbon layup is crafted from genuine Toray T700 and T800 fibers, delivering an exceptional strength-to-weight ratio and outstanding impact resistance. Thanks to internal inflatable bladder molding, each rim boasts a smooth, wrinkle-free interior surface and consistent structure. With these innovations, the Gnar XC achieves a total wheelset weight of just 1320g ±30g, offering significant weight savings without compromising on durability or stiffness.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”58140″ img_size=”full” onclick=”link_image” title=”29er Gnar XC Hub” css=”.vc_custom_1749621976786{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1750067025164{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

PERFORMANCE HUB

At the core of the Gnar XC is the Elitewheels Pro hub, precision-machined from high-grade 7075 aluminum alloy. CNC-finished in-house, these hubs offer exceptional strength, tight tolerances, and long-term reliability. The newly upgraded 50T star ratchet system delivers faster engagement, improved power transfer, and enhanced durability while keeping the hub weight at a lightweight 346g (HG). Maintenance is simplified through a tool-free, minimalist design. High-performance TPI steel bearings ensure smooth rolling performance in the toughest conditions.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”58141″ img_size=”full” onclick=”link_image” title=”29er Gnar XC Spokes” css=”.vc_custom_1749622060941{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1769482852805{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

SPOKES

Sapim CX-Ray spokes come standard. We take precautions to ensure that spoke windup is minimized so wheels don’t go out of true. After the initial truing, the wheel is sideloaded. This process is repeated. Each wheel undergoes an intensive quality control process, including 16 cycles of stress relief, ensuring a maximum deviation of just 0.2mm from true. Combined with Sapim Secure Lock nipples, the result is a reliable and precisely built wheelset that stays true ride after ride.
